In the BomNormalAttributes block, you determine which PARTsolutions attributes are to be transferred to the parts list.

Optionally you may also change the field entries or insert text or variables into empty ones.

Per Default only the attributes "Description", "Standard" and "Material" are displayed in the BOM list (BOM list table) in AutoCAD.

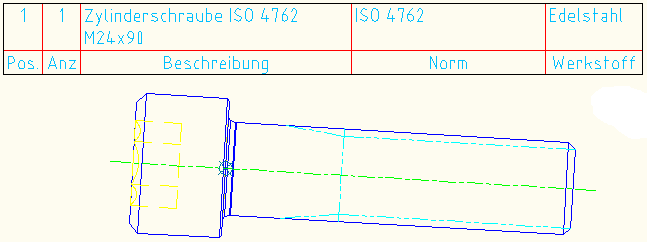

Example 1: Standard attributes in the BOM list

If you add columns in the Parts list dialog box, you can see which other attributes have been transferred from PARTsolutions in the Select columns dialog box (see Fig. Fig. „BOM list enhanced with the attributes "Name" and "Supplier"“). As soon as you have inserted the columns, they become visible with the PARTsolutionstransfer value.

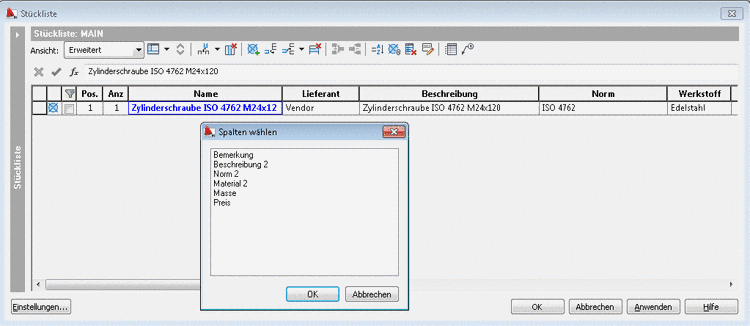

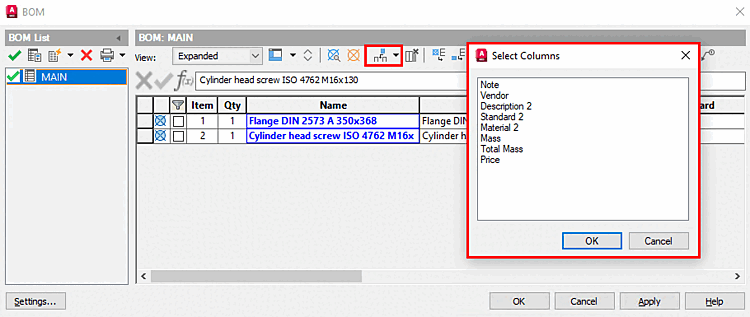

BOM list enhanced with the attributes "Name" and "Supplier"

Parts list table with the desired columns inserted into the drawing:

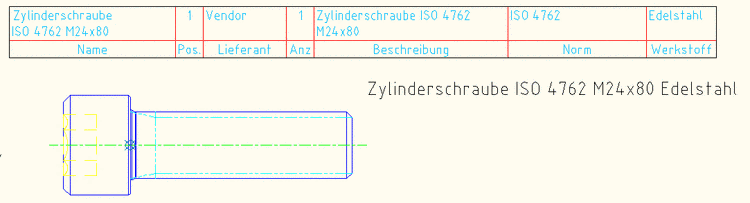

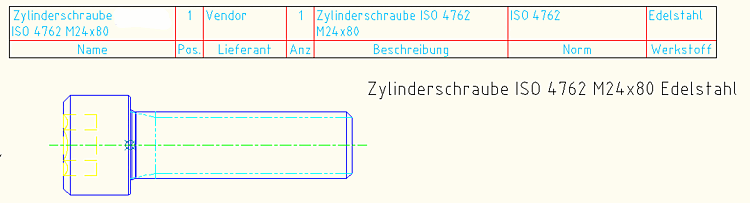

Example 2: BOM list table with extra attributes
