Under Additional export formats, additional files (export formats) can be made available for export (e.g. Revit [RFA = Revit Family Tables], DXF with special tool layers).[32]
Additional files can be made available for the entire project, but also per line or value range value, by specifying a placeholder in the file name in the form $VARIABLENAME..
In the following you can find a description on how to create the needed entries.

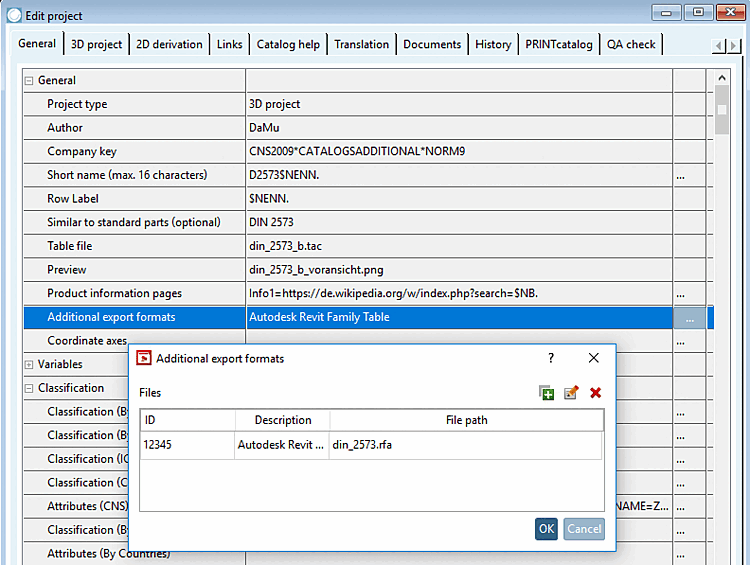

Click on to open the corresponding dialog box. to open the corresponding dialog box.
Add the desired export files by clicking on
. With
and
you can edit and delete.ID: The internally used file name (internal name) with which the file is named during export.
satfile2016 rfafile2016 dwgfile_left_view etc.
Description: The display name in the export menu [Export] of the PARTdataManager (display name)
File name: Click on opens the Explorer in the project directory to select the desired file.
part.rfa
part/%NAME..rfa

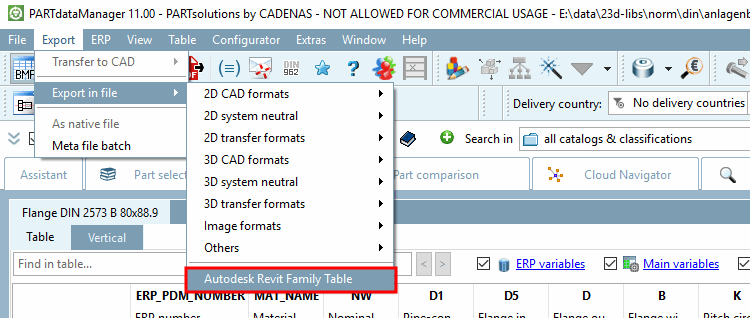

Check the result in PARTdataManager.

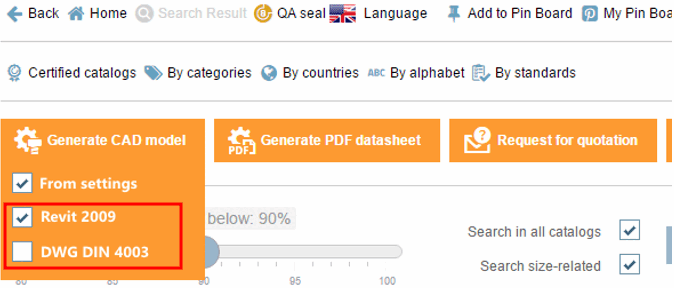

In PARTcommunity, for example, the result looks like this.
[32] When importing with the Q&S Importer, the required entries are created automatically. Information on Quick & Simple can be found under Section 5.13, “Create catalogs - Quick & Simple ”.
