6.4.2.  Version management symbols[65]

  • These symbols signalize general changes:

    • ? = Directory/project not known in version management

      Occurs if the change was made in Explorer, i.e. outside of PARTproject.

    • ! = After downloading a new catalog

    • A = added

      Occurs when a directory has been added, renamed or moved.

    • D = deleted

      Occurs when a directory has been deleted or renamed.

    • R = deleted and then re-added

      Displays, if a directory was renamed.

    • U = update

      Occurs if a directory has been edited by another user in the meantime.

    • M = modified

      Occurs if a directory was changed by the user.

    • C = conflict

      Occurs if two users changed the same file at the same time. This case should be avoided! And if it happened, you can find help under Section 6.11.1, “ eCATALOGsolutions: PARTproject QA - Resolving SVN conflicts ”.

    • V = Subversion version conflict

      Local working copy has to be updated to new version. See Section 6.3.1, “Installation QA Modules ”.

    • - = Subversion version difference

      If an older version is accessing catalogs/projects which have been edited with a newer version then a minus icon is displayed.Section 6.3.1, “Installation QA Modules ”.

    [Note]Note

    Upload changed files in directories / projects to the server

    Check in project (set read-only)

    After completing structural changes, be sure to execute one of these two commands! Only then are your changes SVN-managed.

    As a result, all the above symbols change to a green tick or the lock symbol.

  • Following symbols show the editing rights:

    • Lock: no editing rights available

    • green tick: local working copy and server status are identical

    • red tick: local working copy and server status are different

    [Note]Note

    Upload changed files in directories / projects to the server

    Check in project (set read-only)

    After making changes to the local copy (visible by the red tick), be sure to execute one of these two commands! Only then are your changes SVN-managed.

    As a result, the red tick changes to a green tick, or the lock.

  • QA = "Quality Assurance" - quality control:

    The icon is always displayed if a QA document has been added to the relevant project (Add Q [Add QA protocol] A protocol).

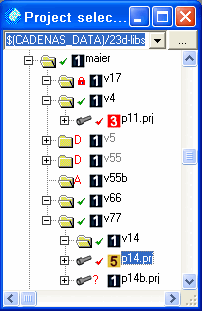

The adjoining picture shows some symbols explained above.

Symbols

Symbols

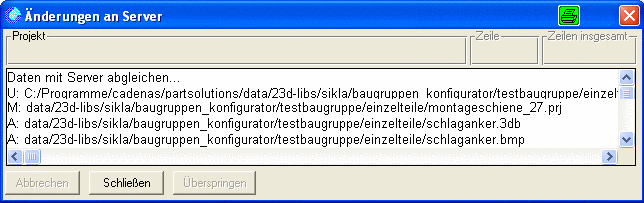

The same icons are also used in the Changes to server [Send changes to the server] dialog.

Send changes to the server

Send changes to the server



[65] Hereafter referred to as "SVN".
