2.2. Licensing

License key (on license server)

You can find information on this via Dashboard.

https://servername.cadenas.internal:9022/webapps/appserverwatch/index.html

Licensed users: 3dFindit -> tabbed page Common:

Licensing of 3Dfindit users:

[Note]Note

  • The 3Dfindit licensing does not allow 1 user per default anymore (only V12 < SP4).

  • The 3Dfindit module will only run if there are 3Dfindit licenses, because the 3Dfindit AppServer module already requires a license and if it is not available, the module will not be loaded so that no website will be displayed.

  • If you have the following license key on FLMserver for 1 User, then only first User which logs in is allowed (also Autologin is possible). All other users can not login anymore.

    Example for 1 user:

    CNS2009*PAPPSERVER*CLIENTS*3DFINDIT*1

  • Session can be started by login from 3Dfindit.com Server or Clients. Each login from Web or from CAD will get a new session. There is a limit of 5 active sessions for User. If a 6th session will be started, then it will kick first session, so that there are again 5.

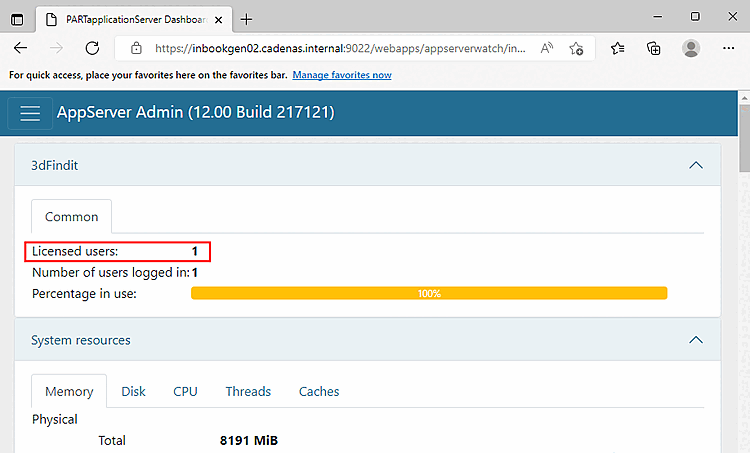

Tabbed page -> "Licensed users"

Tabbed page -> "Licensed users"

Licenses: Tabbed page Licenses

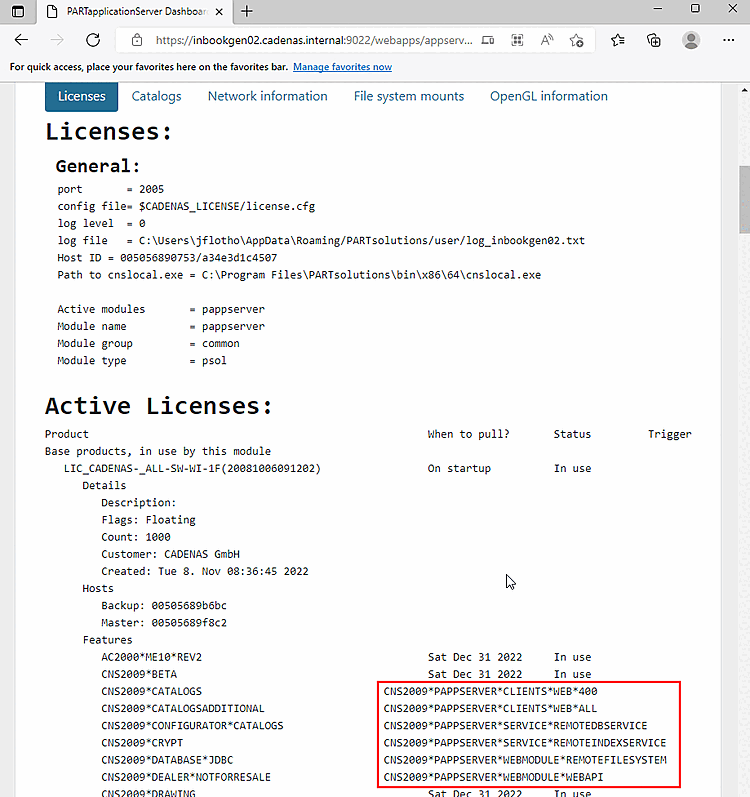

Tabbed page "Licenses"

Tabbed page "Licenses"
