2.3.10.3.1. Block [AttributeMapping(3D)] - Set attribute language
2.3.10.3.1.1. Declare prefix for PARTsolutions attributes

Set the desired language under Attr_CopyFrom_00. The keys Attr_Content_00 and Attr_Section_00 remain unchanged.

  • default: The attributes in the $CADENAS_LANGUAGE are transferred.

  • Specify the language (german, english, french, etc.): The standard attributes are transferred in the specified language.

    [Note]Note

    If there is no translation for an attribute in the specified language, no attribute is transferred (not even the one from the $CADENAS_LANGUAGE language).

    The parameters "var_exclude" and "var_visbile=1" can be used to copy attributes.

    "var_visible=1": (default): Tells the interface that only visible attributes have to be processed.

    You can use "var_exclude" to assign certain attributes to an "Ignore" list.

    Examples:

    • Attr_CopyFrom_01=default,var_exclude=A,var_visbile=1

      Variable A is explicitly placed on the ignore list.

    • Attr_CopyFrom_01(isCatalog(norm))=default,var_exclude=D,var_visbile=1

      The printout is only applied to the standard catalog.

  • No entry: No standard attributes are transferred. (To explicitly pass certain attributes, please see the information in the following sections)

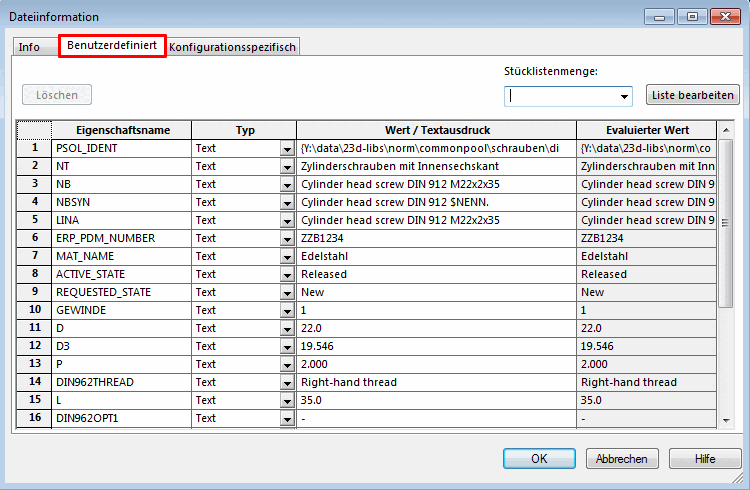

In SolidWorks, these are displayed as standard attributes under File information -> User-defined tab page.

"File information" -> tabbed page "User-defined"

"File information" -> tabbed page "User-defined"
