You can extend the 2D derivation views already available in the standard installation with your own views (optionally with different paper formats). You can easily make adjustments in edit mode [Edit mode].

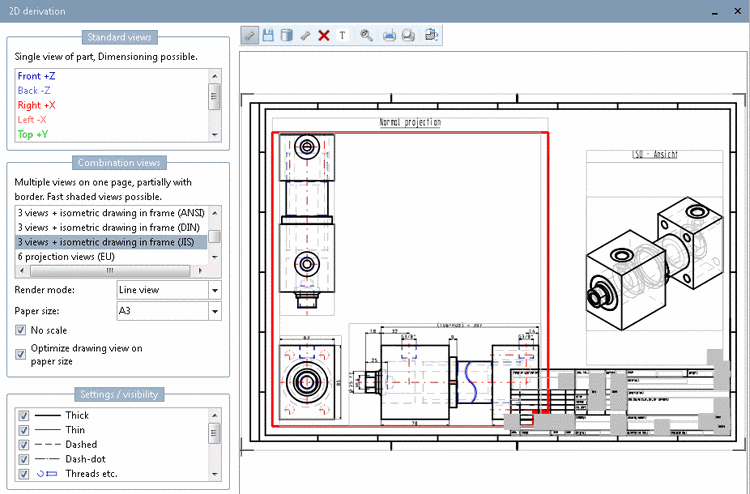

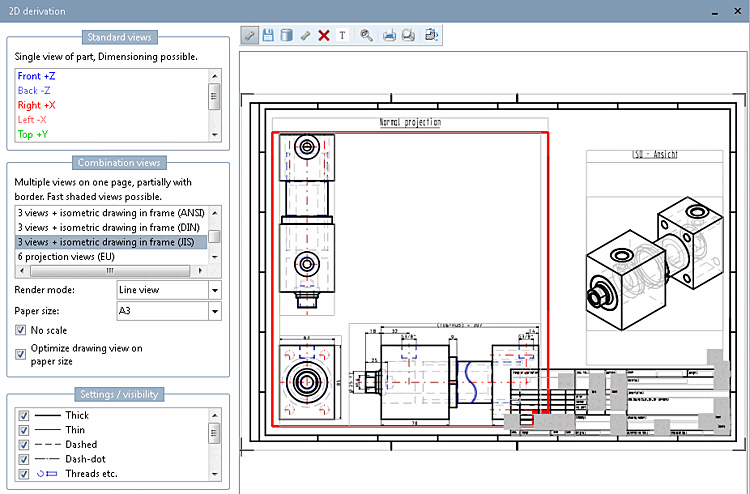

Example: 3 views + isometry in the frame (JIS) [3 views + isometric drawing in frame (JIS)]

You can select the following views in the 2D derivation dialog box:

The following describes how you can create your own 2D derivation templates (views).

If you want to create a completely new template for a combination view, you must create it at file level (not all options are available in edit mode [Edit mode] ).

The most effective way to do this is to use a similar template (.dw file) as a basis and copy it. You can then either make the desired adjustments at file level or directly in the 2D derivation docking window in edit mode [Edit mode].

The structure of help supports both methods.

Example:

translateable [Translatable]

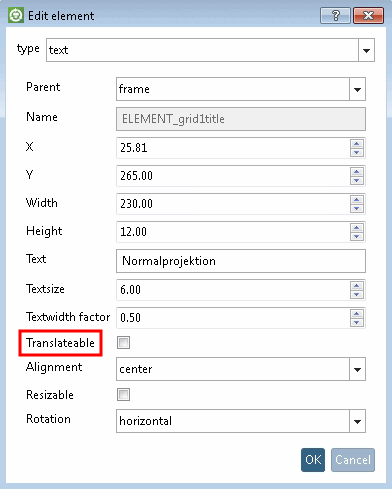

For example, if you are in edit mode [Edit mode] and have opened the Edit element dialog box, you can search for the terms of the individual input fields in the help. For example, for Translatable.

If you edit the dw file, for example, you can search for the individual key names.

[ELEMENT_isotitle]
type=text
parent=frame
text=ISO - Ansicht
position_x=287.71
position_y=240.00
position_w=113.83
position_h=10.00
text_size=6
width_factor=0.5
sizeable=false
translateable=true
rotation=horizontal
text_align=center

The following two sections"Basics" and"Editing combination views in edit mode" give you an overview. You will find details on the individual elements in the following sections.
