7.13.5.5.1. Manual assignment

For the first component (usually the dummy component), the assignments must be made manually. For other components, the Automatic function usually saves a considerable amount of time (see Section 7.13.5.5.2, “Automatic assignment”).

  1. Select the desired variable where you want to make the assignment.

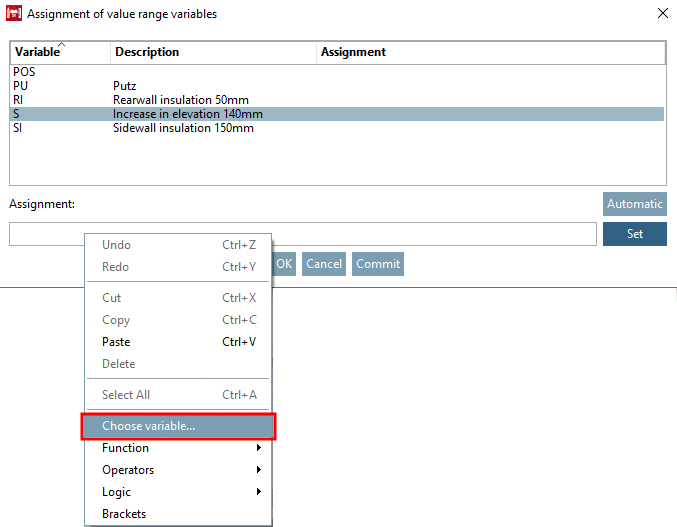

  2. In the Assignment input field, call up the Variable browser using the Select variable [Choose variable...]... context menu command.

    -> The variable browser [Variable browser] opens.

    Variable browser

    Variable browser

  3. Select part and variable of the part.

  4. Confirm with OK.

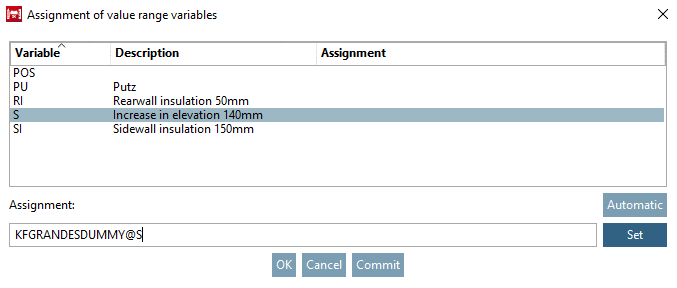

    -> The selection is displayed in the input field under Assignment.

  5. Click on Set.

    -> The assignment is entered in the respective column.

    When mapping value range variables on another, up to now there was no check if the data types of the two variables are corresponding.

    With V12.7, an icon is displayed and the tooltip shows Assignment has [Assignment has wrong data type] wrong data type.

    [Note]Note

    The data type should also be corrected accordingly for functioning assemblies.

  6. Make all the required assignments in this way and then click OK.

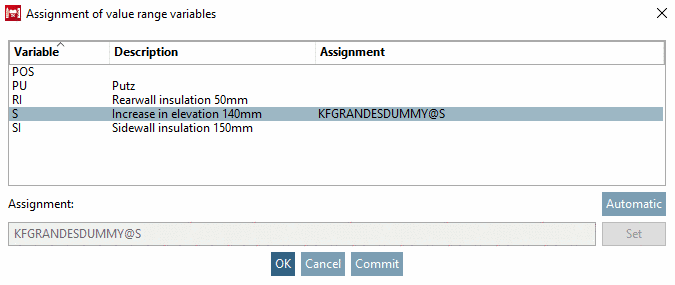

    -> The assignments are displayed in the Configurator docking window under the menu item Value range assignments.
