12.2.2.1.  Standard views

12.2.2.1.1. Current view

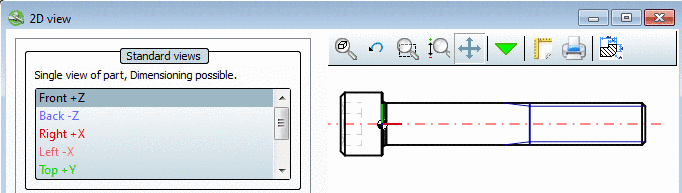

Standard views

Standard views

The following individual views are available:

  • Front

  • Back

  • Right

  • Left

  • Top

  • Bottom

  • Isometric

  • Current view

  • Sectional view

The "Line display [Line view] " derivation view [Derivation view] is automatically used for the individual views.

Advantage in this mode:

Manual dimensioning is possible. See Section 12.2.2.5, “Add dimensioning in PARTdataManager before the export ”.

Optionally, you can derive the current 3D view. See Section 12.2.2.1.1, “ Current view ”.
